ATM Machine Parts Glory NMD100 NMD Dispenser With 4+1 Cassettes
With the lowest reject rate on the market, the Glory NMD100 guarantees maximum uptime and consistent, front or rear delivery of up to 100 banknotes per bundle. Offering up to eight cassettes, each holding up to 3000 notes, the NMD100 provides extensive functionality and flexibility for your customers wherever they are deploying your solutions.
A high capacity module with proven reliability, the Glory NMD100 minimises overall ATM servicing costs for your customer and provides maximum efficiency.
Cassette flexibility – The NMD100 offers eight high capacity cassettes, each holding up to 3000 notes each. Each cassette can be individually replenished and is available in several formats. This ensures increased ATM uptime and CIT collection efficiency, as well as delivering complete flexibility and ease of integration to your customers. For increased efficiency, a sealable reject vault or tray is also available.
Intelligent Double Detection IDD – Offers unbeatable accuracy and consistent detection of doubles even with severely degraded notes. No mechanical adjustments or intervention necessary.
High Performance Feed HPF – Provides consistent and durable feeding, reliable handling of notes of all conditions and the ability to process notes without causing damage.
The NMD100 is designed in accordance with the recommendations of leading International Standards Organisations including RoHS, UL, CE and UKCA to allow for final approval when installed in complete systems.
Product details
Porduct name | NMD100-Notes And Media Dispenser |
|---|---|
Used in | GRG,NMD,Delarue,Talaris,Glory H22N,H68N,8240,9250 etc. ATM machine |
Dimesion | 530mm* × 292mm × 549mm |
Quality | new original |
Lead time | Usually within 3-7 working days after payment, large orders,the lead time according fact time |
Capacity | 1 to 8 cassettes configurable Short cassette: 240 mm or 2000 banknotes Long cassette: 340 mm or 3000 banknotes A separate reject cassette: 250 banknote |
Connectivity | RS232C connection as standard Integrated shutter interface to control your own shutter Option: plug and play shutter |
Dimensions (H × W × D) | 530* × 292 × 549 mm *height shown for 2 denomination with 85 mm throat extension, for each additional denomination add 128 mm |
Throat extensions | Standard configuration 85 mm Throat extension kits for 130, 180 and 320 mm available (for rear service only) |
Based on new issue banknotes, circulated notes will reduce capacity. The performance of polymer notes may reduce at extreme temperature and humidity combinations. Specifications are subject to change without notice.

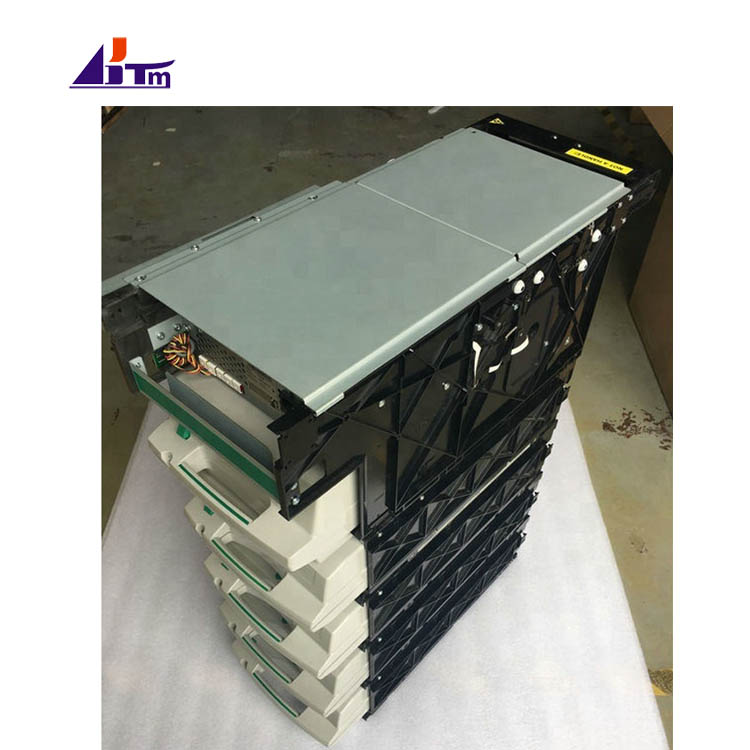

Product pictures
